PIVOT DOORS

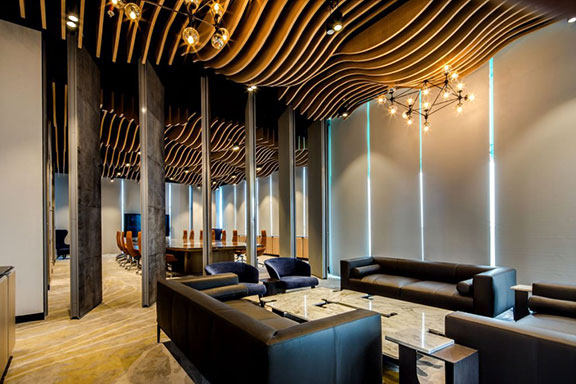

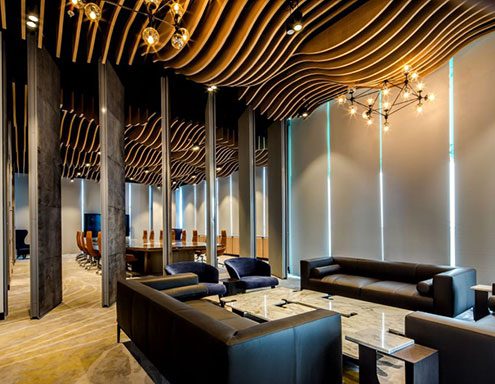

Gibca’s Pivot Doors (Automatic & Manual) is an innovative design that creates a stunning wide and generous opening for entrances, hallways, conference and ballrooms. Its high-performance hardware allows for smooth and impressive operation of panels with ease plus safety.

CONFIGURATIONS

We have designed and engineered two options for our Pivot doors- Manual and Automatic. Both options are a modern alternative to hinge doors and have top quality pivot bearings that make maneuvering a heavy over-sized door easy and safe. We offer a fully automatic option with a mechanism neatly mounted over pivot assembly with in-built position controls.

AUTOMATIC OPERATIONMANUAL OPERATION

Our Automatic Pivot doors are a revolutionary design that allows for perfect pivot movement of the hinges, giving it an ultra-smooth and outstanding performance. The speed remains constant making it a safe and even operation of the door. Ideal for creating a luxurious opening architecture where the flow of traffic needs to remain constant and uninterrupted.

  • Completely sealed motor and gear unit directly mounted over pivot assembly with in-built position control.
  • Constant speed operation for safer and quieter operation. Completely encased assembly eliminates hazards associated with exposed gear assemblies.
  • In case of actuator failure, manual override available in this system. No need to remove the actuator.
  • Uses linear actuator lock assembly that eliminates any possibility of damage due to forced movements. It also ensures that the doors are firmly locked in each position.
  • Easier spare actuator replacement allowing quick fault detection and rectification for the damaged unit.
  • Electrical actuator works 0 to 90 degrees only. The system does not require mechanical end stopper for fully open and fully close positions.

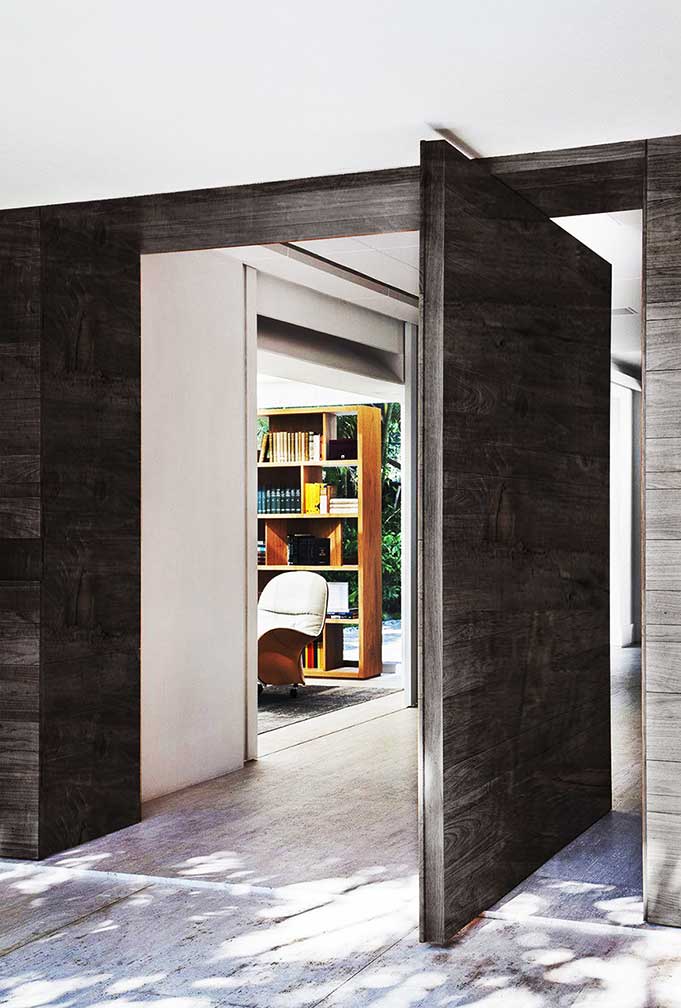

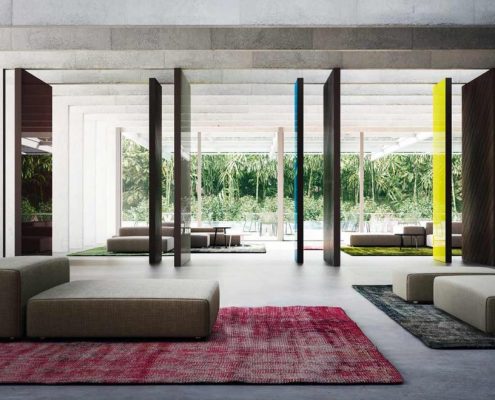

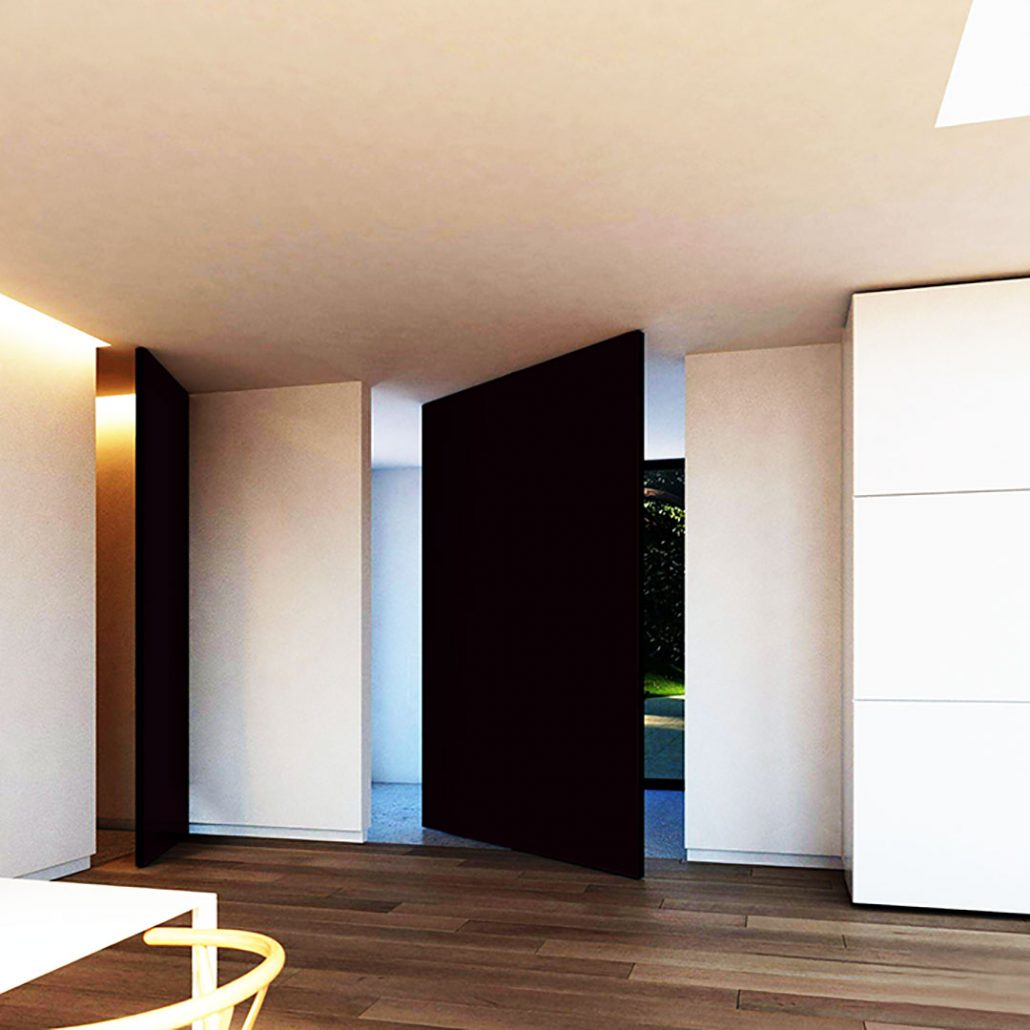

Our single-pivot door panels can be built with a greater width than a single hinged door and grouped with multiple pivot doors providing a streamlined look with smooth operation. The pins are ideally located at the top and bottom of the frame, creating an even pivot movement.

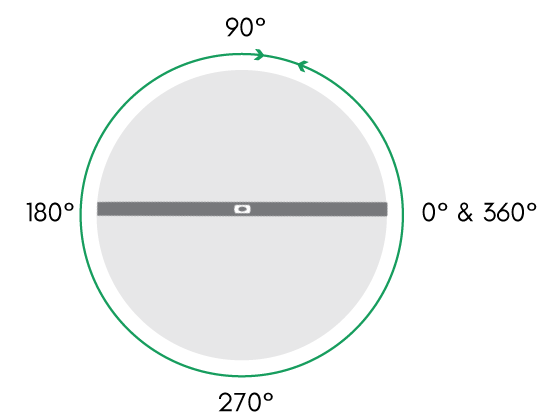

Compact System

This system is the most compact system: the hinge acts as revolving point.

  • Double-acting and 360º rotating doors
  • No hold positions or closing function
  • Adjustable closing speed of the door (soft close and back check)

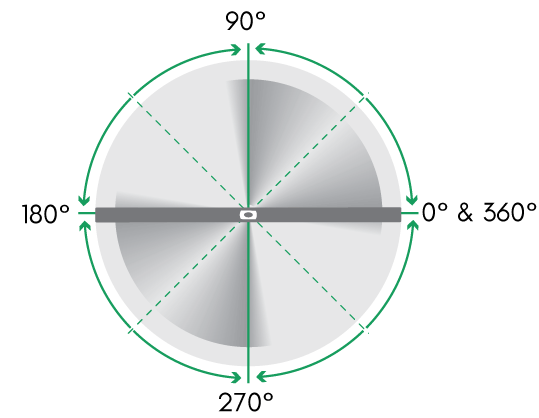

Compact H System

System 3 has three functions: rotation, closing and hold positions. System 3 can turn through 360º and is characterized by a hold position at every quarter of a circle.

  • Rotates 360º in both directionsº
  • Hold positions at 0º, 90º, 180º and 270º
  • Self-opening – door automatically moves from each 45º angle in both directions to the next hold position
  • Self-closing – door comes to rest in the desired hold position after a few movements

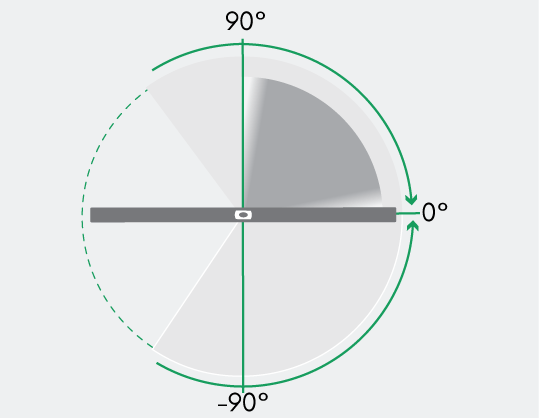

Configura System

The system adds a new dimension to the pivot door by creating the ultimate smoothness: total control over the movement of the door.

  • Hold positions at 0º, 90º and -90º
  • Self closing from -125º and 125º -after opening the door returns smoothly to
    the 0º position.
  • Door can be manually set to the hold position 90º or -90º
  • Adjustable closing damping (soft close)
  • Adjustable hydraulic backcheck
